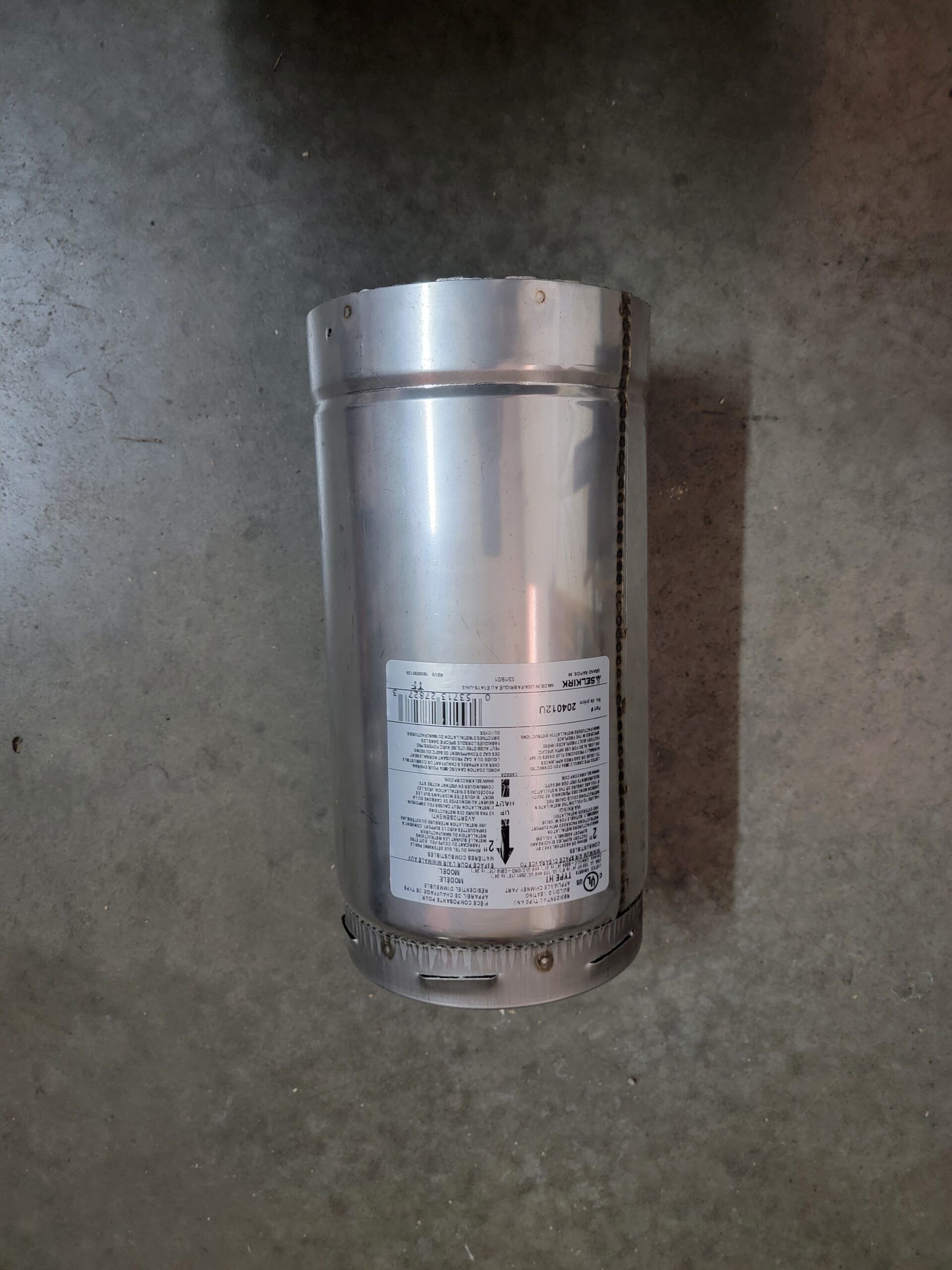

4-Inch Insulated Chimney Pipe - 12-Inch Length

This 4-inch insulated chimney pipe is a 12-inch fixed length for compatible Selkirk Model HT / Ultra-Temp chimney installations. It is the shortest standard length in the 4-inch lineup and is useful when you need to fine-tune total chimney height or add a small amount of length to a larger chimney run.

Selkirk's current Ultra-Temp literature lists the 4-inch system to UL 103 Type HT in the United States. The 4-inch chimney uses stainless steel inner and outer walls with 1-inch solid-pack insulation and requires 2 inches of airspace to combustible materials when installed according to the manufacturer's instructions.

12-Inch 4-Inch Chimney Pipe Features

• Inside diameter: 4 inches
• Outside diameter: Approximately 6 inches
• Nominal length: 12 inches
• Selkirk product number: 204012U
• Insulation: 1-inch solid-pack insulation
• Listing: UL 103 Type HT for the 4-inch Ultra-Temp system in the United States
• Clearance: 2 inches of airspace to combustibles when installed per Selkirk instructions
• Connection: Secure twist-lock chimney connection with securing screw
• Manufacturer: Selkirk

Where a 12-Inch Section Is Useful

The 12-inch length is ideal when a 24-inch or 36-inch chimney section would add too much height. It can be combined with other compatible Selkirk 4-inch chimney lengths to build the required system while keeping the chimney layout clean and properly supported.

Selkirk notes that installed length is reduced at each joint because the sections overlap when connected. Account for that joint engagement when planning the final chimney height.

Combine With Other 4-Inch Chimney Lengths

• 4-Inch Insulated Chimney Pipe - 12-Inch Length
• 4-Inch Insulated Chimney Pipe - 18-Inch Length
• 4-Inch Insulated Chimney Pipe - 24-Inch Length
• 4-Inch Insulated Chimney Pipe - 36-Inch Length

Related 4-Inch Installation Components

Depending on your chimney route, you may also need the 4-Inch HT Pipe Adapter, 4-Inch Black Ceiling Support, 4-Inch Storm Collar, or 4-Inch Rain Cap.

Read our 4-Inch Stove Pipe Guide for help understanding where connector pipe ends and insulated chimney begins. You can also browse all 4-inch chimney pipe and installation accessories.

Installation and Compatibility

Use this chimney section only as part of a compatible Selkirk 4-inch Model HT / Ultra-Temp system and only where permitted by the appliance manufacturer and local authority having jurisdiction. The correct chimney height, supports, firestops, flashing, and clearances depend on the appliance, building, roof configuration, and chimney route.

For current manufacturer specifications and technical literature, see the Selkirk Ultra-Temp chimney information.
