4-Inch Black Ceiling Support for Selkirk Model HT

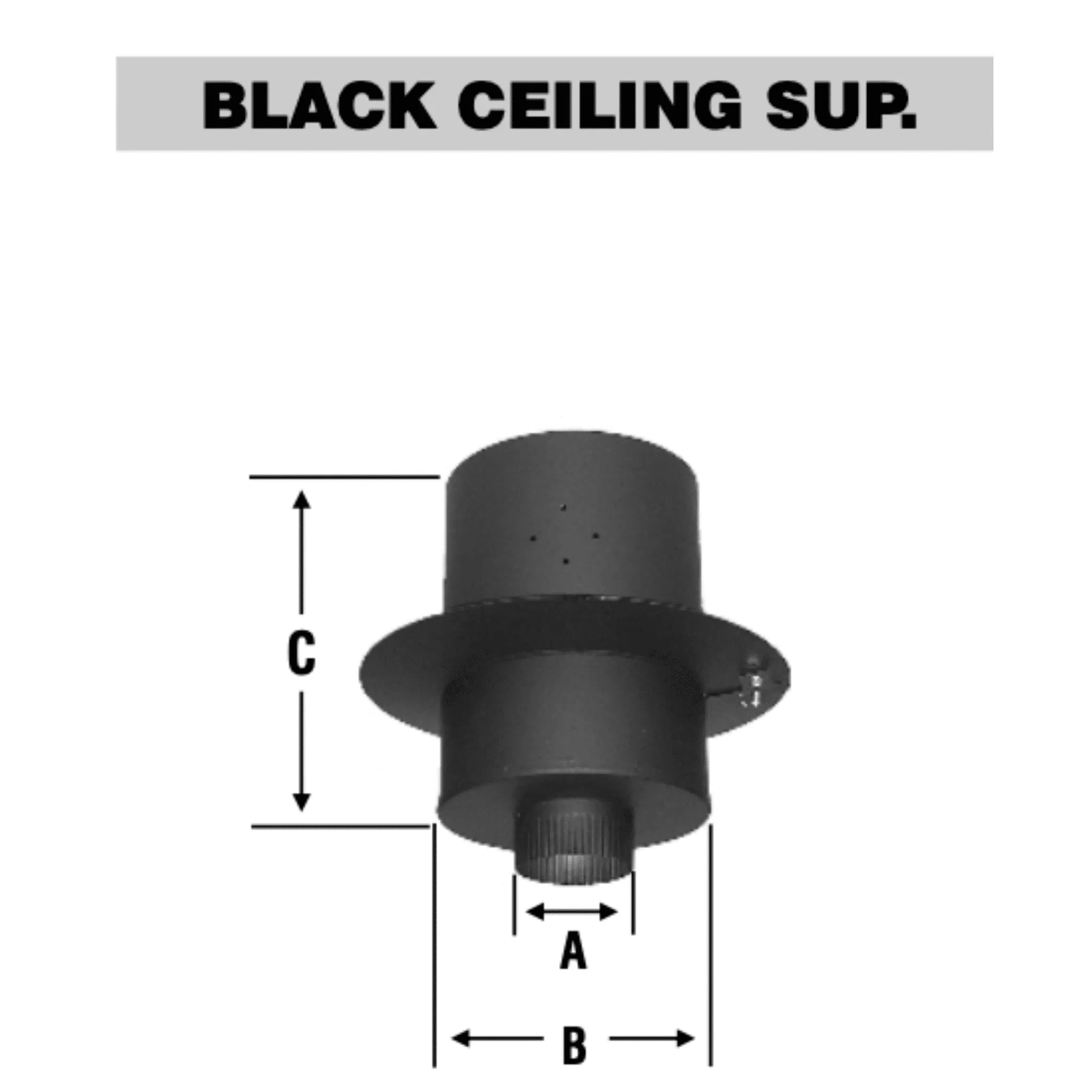

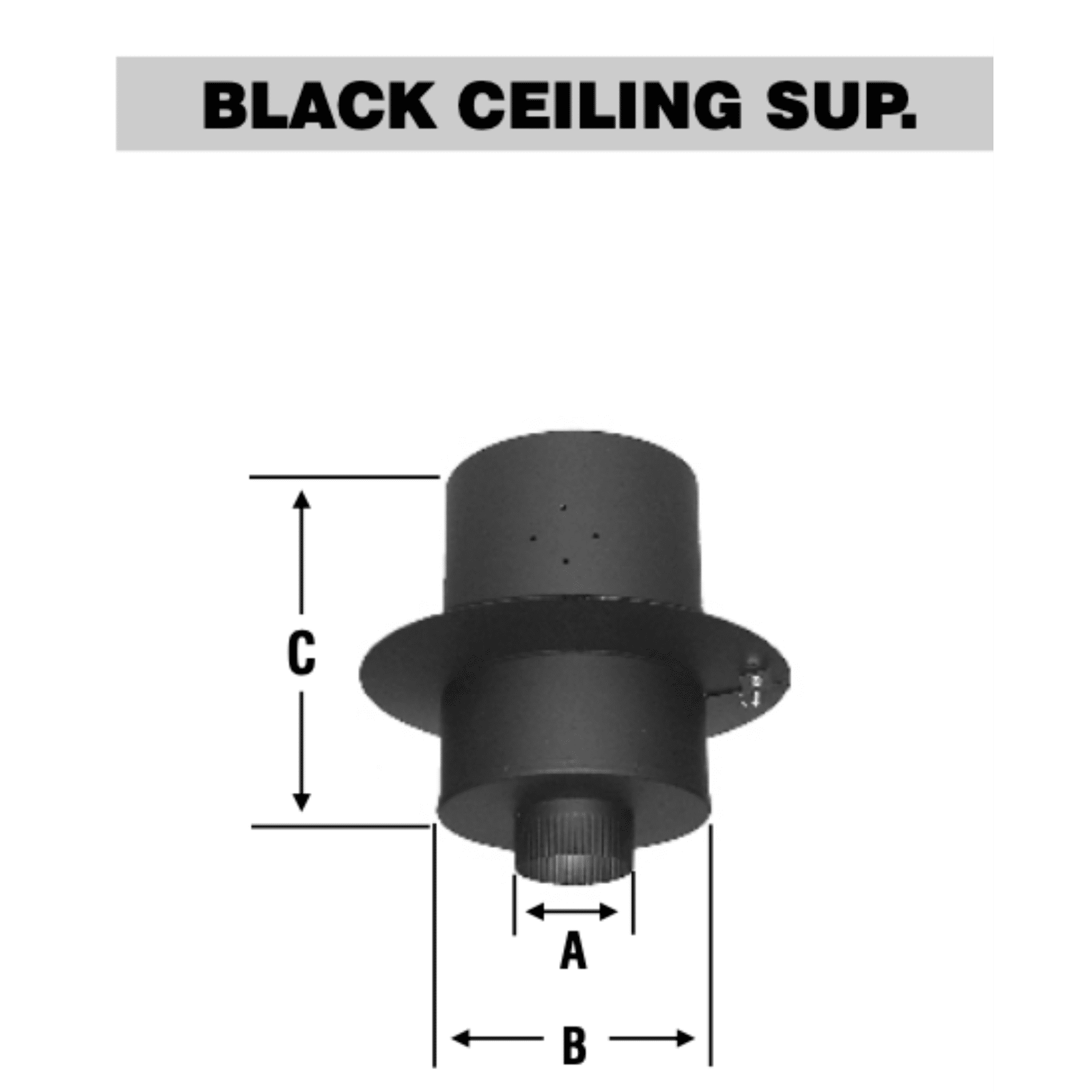

The 4-inch black ceiling support is designed to support a compatible Selkirk 4-inch insulated chimney where the chimney passes through a flat ceiling joist area. Its round, black high-temperature finish provides a cleaner interior transition while supporting the chimney system above.

Selkirk identifies this component as HT4BCS. Current Selkirk literature states that the 4-inch ceiling support is used to support chimney from a flat ceiling joist and can support up to 50 feet of chimney when installed according to the manufacturer's instructions.

4-Inch Black Ceiling Support Features

• Chimney size: 4 inches
• Manufacturer: Selkirk
• Selkirk product code: HT4BCS
• Framing size: 9 x 9 inches
• Overall support dimensions: approximately 12 inches across
• Finish: Decorative black high-temperature paint
• Support capacity: Up to 50 feet of chimney when installed per Selkirk instructions
• Application: Flat-ceiling chimney support

Where the Ceiling Support Fits in the Chimney System

The ceiling support is used at the point where the listed insulated chimney system is supported through the ceiling. Below that transition, the appliance may use approved connector stovepipe when permitted. Above the support, the compatible Selkirk insulated chimney continues through the structure and roof as required by the installation.

Our 4-Inch Stove Pipe Guide explains the difference between connector stovepipe and insulated chimney pipe.

Related 4-Inch Components

• 4-Inch HT Pipe Adapter
• 4-Inch Insulated Chimney Pipe - 36-Inch Length
• 4-Inch Insulated Chimney Pipe - 24-Inch Length
• 4-Inch Attic Insulation Shield
• 4-Inch Rain Cap

You can also browse all 4-inch insulated chimney pipe and installation accessories.

Installation Notes

The ceiling support is one part of a complete listed chimney system. Additional shielding, firestop, attic-insulation, flashing, support, and termination components may be required depending on the structure and chimney route.

Follow the appliance manual, Selkirk installation instructions, and applicable building and fire codes for framing, clearances, support, penetrations, and chimney height. Do not substitute improvised support methods for the listed chimney components.

For current manufacturer specifications, see the Selkirk Ultra-Temp chimney information.
