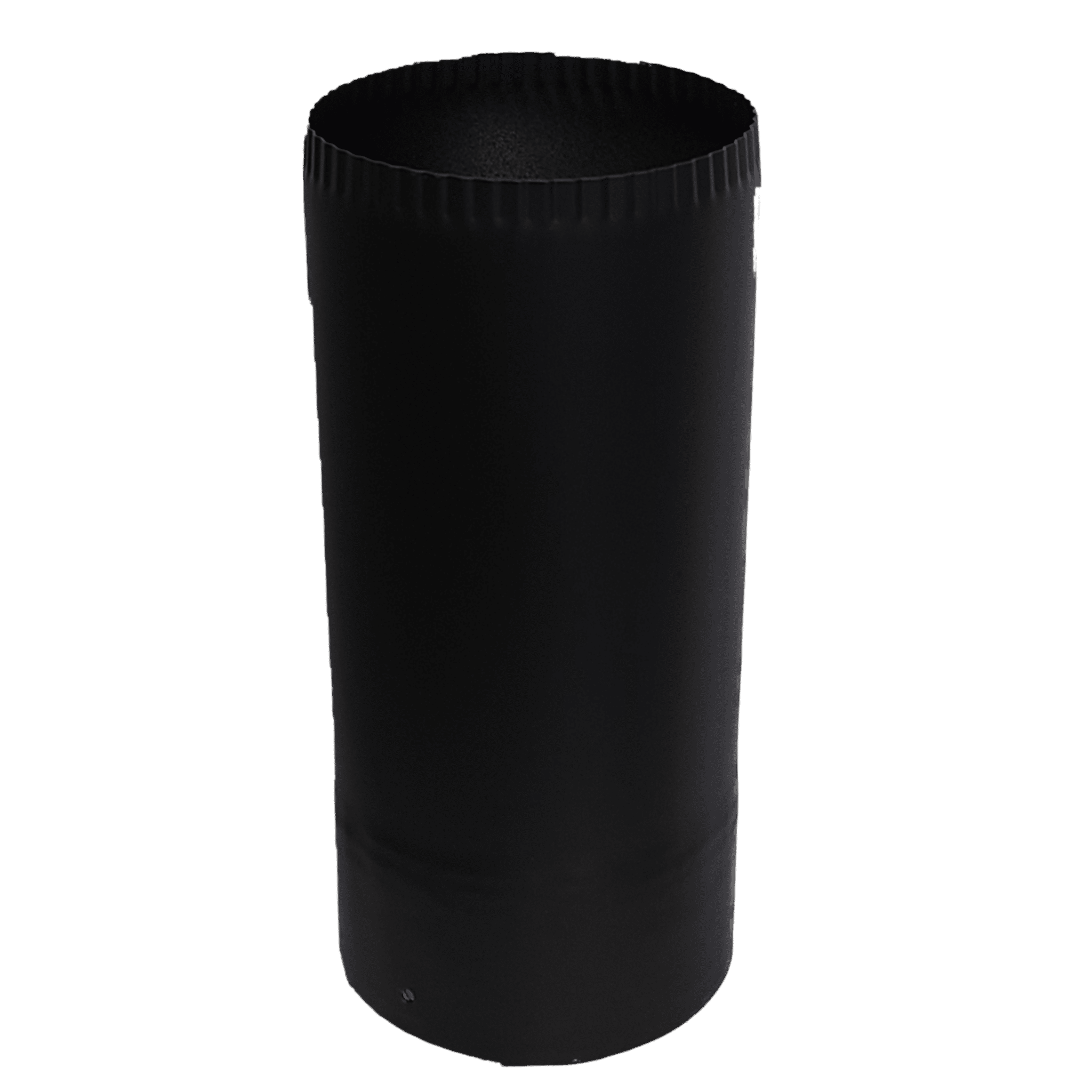

4-Inch Adjustable Slip Joint Connector

This 4-inch slip joint connector is an adjustable single-wall connector-pipe section that provides approximately 4 to 8 inches of usable adjustment. It is made from 26-gauge black-finished stainless steel with seamless welded construction.

The slip joint is useful when fixed-length connector pipe leaves a small gap between the appliance and the chimney transition. Instead of adding another full pipe section, the adjustable connector lets you fine-tune the final connector length where that type of connection is permitted.

4-Inch Slip Joint Features

• Diameter: 4 inches
• Adjustable length: approximately 4 to 8 inches
• Material: 26-gauge black-finished stainless steel
• Construction: Seamless welded pipe
• Type: Adjustable single-wall connector stovepipe
• Purpose: Fine-tunes connector-pipe height or length

Use It to Fine-Tune the Connector Run

The slip joint works with the straight connector-pipe lengths in the same 4-inch system. It can help align the connector run with the chimney adapter or ceiling transition without creating an unnecessary full-length section.

• 4-Inch Single-Wall Stove Pipe - 1 Foot
• 4-Inch Single-Wall Stove Pipe - 2 Feet
• 4-Inch Single-Wall Stove Pipe - 3 Feet
• 4-Inch 45-Degree Single-Wall Elbow

Transition to the Insulated Chimney

This connector is part of the single-wall section of the venting system. When the installation reaches the point where the listed insulated chimney begins, use the 4-Inch HT Pipe Adapter and the compatible Selkirk chimney components specified for the installation.

Read our 4-Inch Stove Pipe Guide for help understanding the connector-to-chimney transition. You can also browse all 4-inch chimney and installation accessories.

Compatibility and Safety

Use this slip joint only with a compatible 4-inch connector-pipe system and only where adjustable single-wall connector pipe is permitted by the appliance and installation instructions. Verify the required overlap, fastening method, clearances, and connector configuration before use.

Do not use single-wall connector pipe as a substitute for listed insulated chimney through walls, ceilings, roofs, attics, or other building penetrations.

For general heating and chimney safety information, see the U.S. Fire Administration heating fire-safety guidance.
