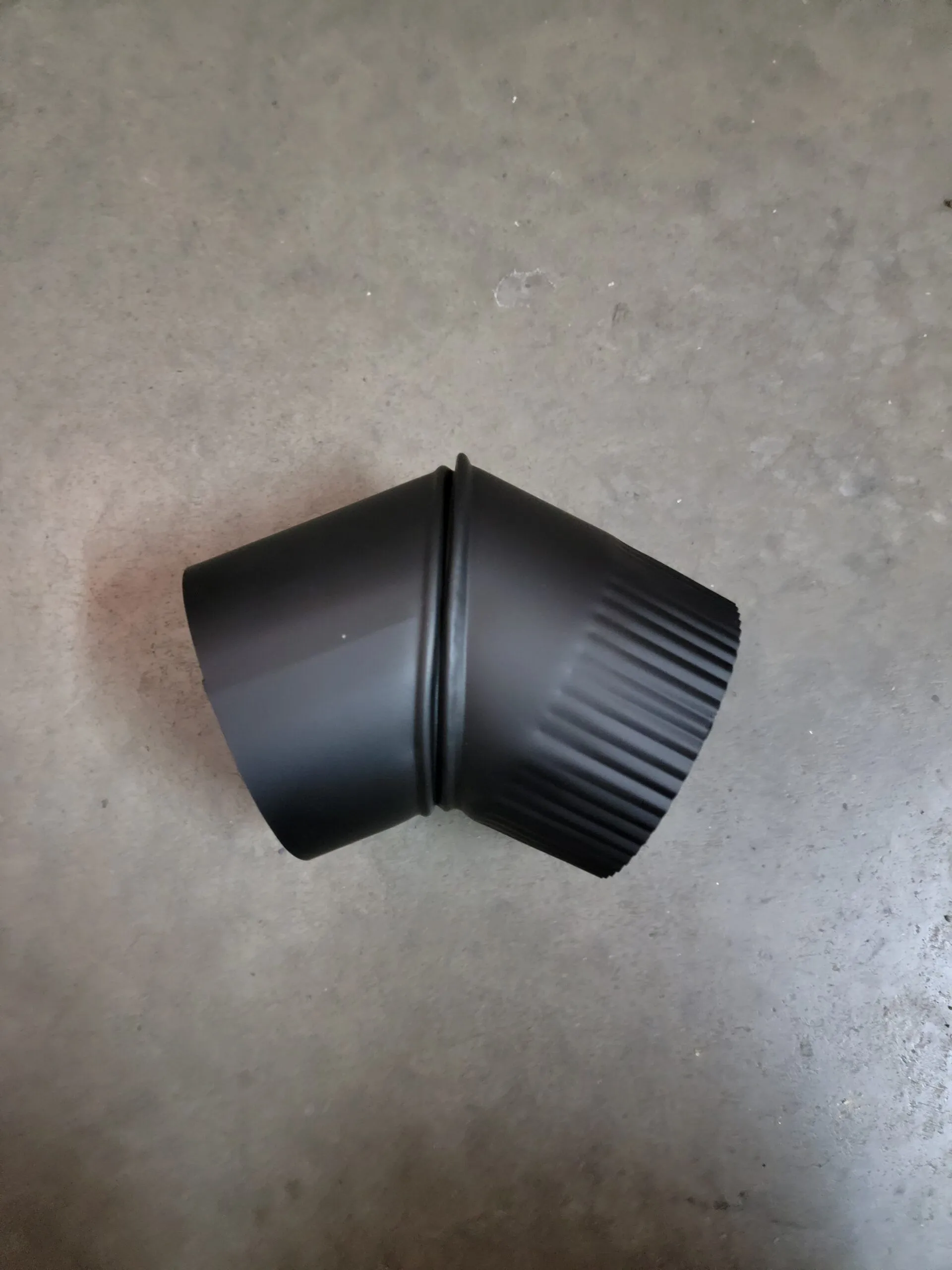

4-Inch 45-Degree Single-Wall Stove Pipe Elbow Pair

This product includes a pair of 4-inch 45-degree single-wall elbows for compatible connector-pipe installations. The elbows are made from 26-gauge black-finished stainless steel and are used to create an offset in a connector stovepipe run where that configuration is permitted by the appliance and installation instructions.

4-Inch Single-Wall Elbow Pair Features

• Quantity: 2 elbows
• Diameter: 4 inches
• Angle: 45 degrees each
• Material: 26-gauge black-finished stainless steel
• Type: Single-wall connector stovepipe fittings
• Use: Creates an offset in a connector-pipe run where allowed

Why Use a Pair of 45-Degree Elbows?

Two 45-degree elbows can be used to shift a connector-pipe run around an obstacle or align it with the chimney transition while maintaining a more gradual change in direction than a sharp turn. The exact offset depends on the straight pipe length between the two elbows.

Use only the number of elbows needed for the installation, because every change in direction can affect draft and the overall venting layout.

Use Only as Connector Stovepipe

These elbows belong in the single-wall connector section between the appliance and the beginning of the listed insulated chimney system. They are not a substitute for insulated Class A chimney through walls, ceilings, roofs, attics, or similar construction.

At the required transition point, use the 4-Inch HT Pipe Adapter and compatible insulated chimney components.

Related Connector-Pipe Components

• Single 4-Inch 45-Degree Elbow
• 4-Inch Single-Wall Stove Pipe - 1 Foot
• 4-Inch Single-Wall Stove Pipe - 2 Feet
• 4-Inch Single-Wall Stove Pipe - 3 Feet
• 4-Inch Slip Joint Connector

Read our 4-Inch Stove Pipe Guide for help planning the entire connector-to-chimney transition.

Installation and Safety

Follow the appliance manual for permitted elbow count, connector configuration, rise, clearances, fastening, and chimney requirements. Do not assume that an installation is approved simply because the appliance has a 4-inch outlet.
