4" Wall Support Band

Used to stabilize the chimney against an outside wall

Must be installed just above the Tee or 45 degree elbow and every 2 to 4 to 6 feet thereafter

Minimum 2 required

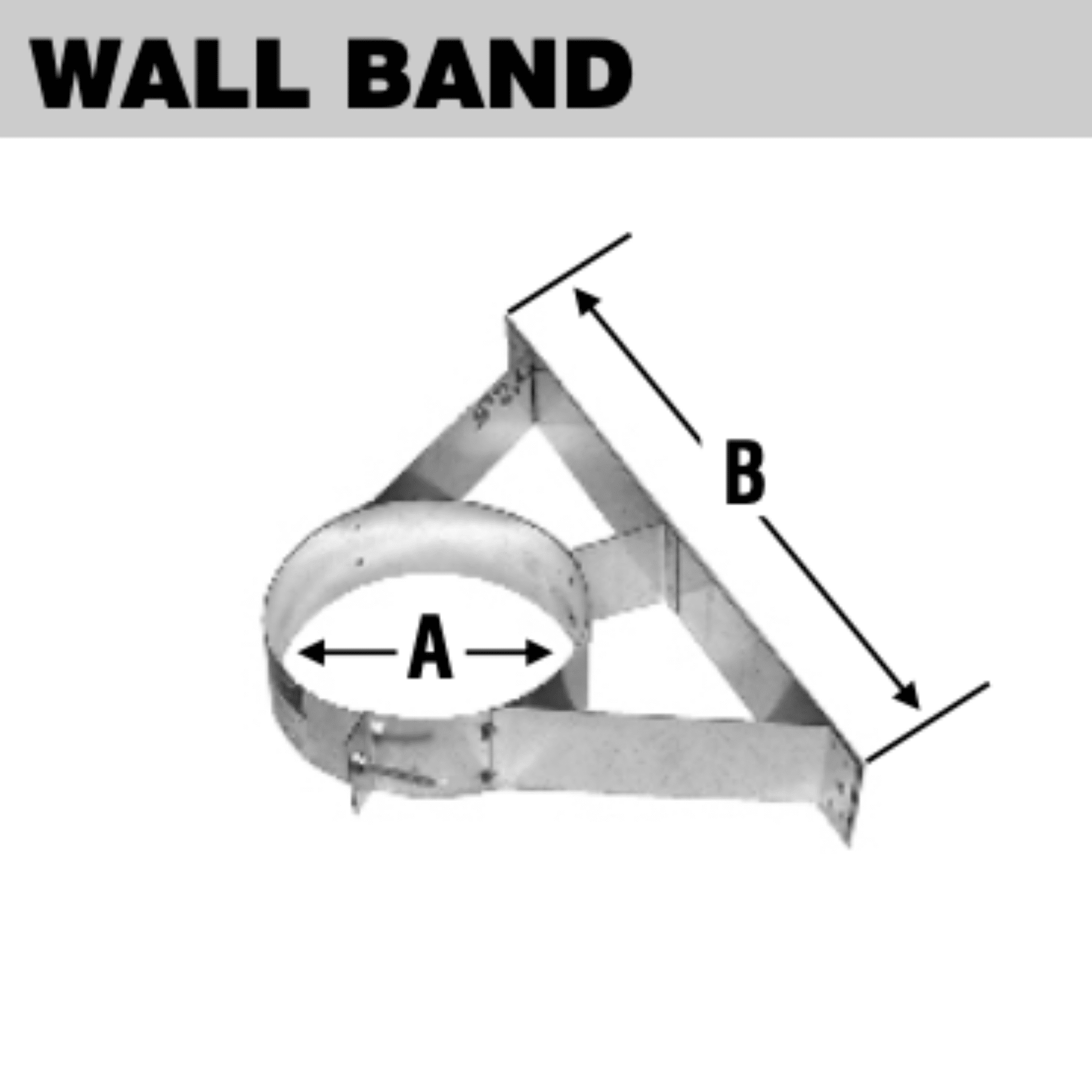

Dimensions:

A - 6"

B - 14"

This product is for an outside wall to secure your pipe. This is a basic support to secure your 4" HT pipe.  6" opening on the inside of the support Band to secure the 4" HT Class A pipe. Recommended outside just above the transition of the 45 degree 4" Elbow coming out of the wall and securing every 2 to 4 feet with a minimum of 2 supports to firmly secure your pipe. A Wall Support Band can be used for other types of pipe that have an outside dimension of 6 to 6 3/4" to firmly secure it. For more information on our wood stoves.

Not to mention, the 4" Wall Support Band or secure wall supports are very important to use correctly and often enough. Therefor, if the support is not at the right distance away from the wall, you will need to put a spacer on the wall. Secondly, after securing the support to the wall, do not over-tighten the clamp on the pipe and crush it. Finally, check your entire installation for secure, safe, plumb and tightness of joints.
