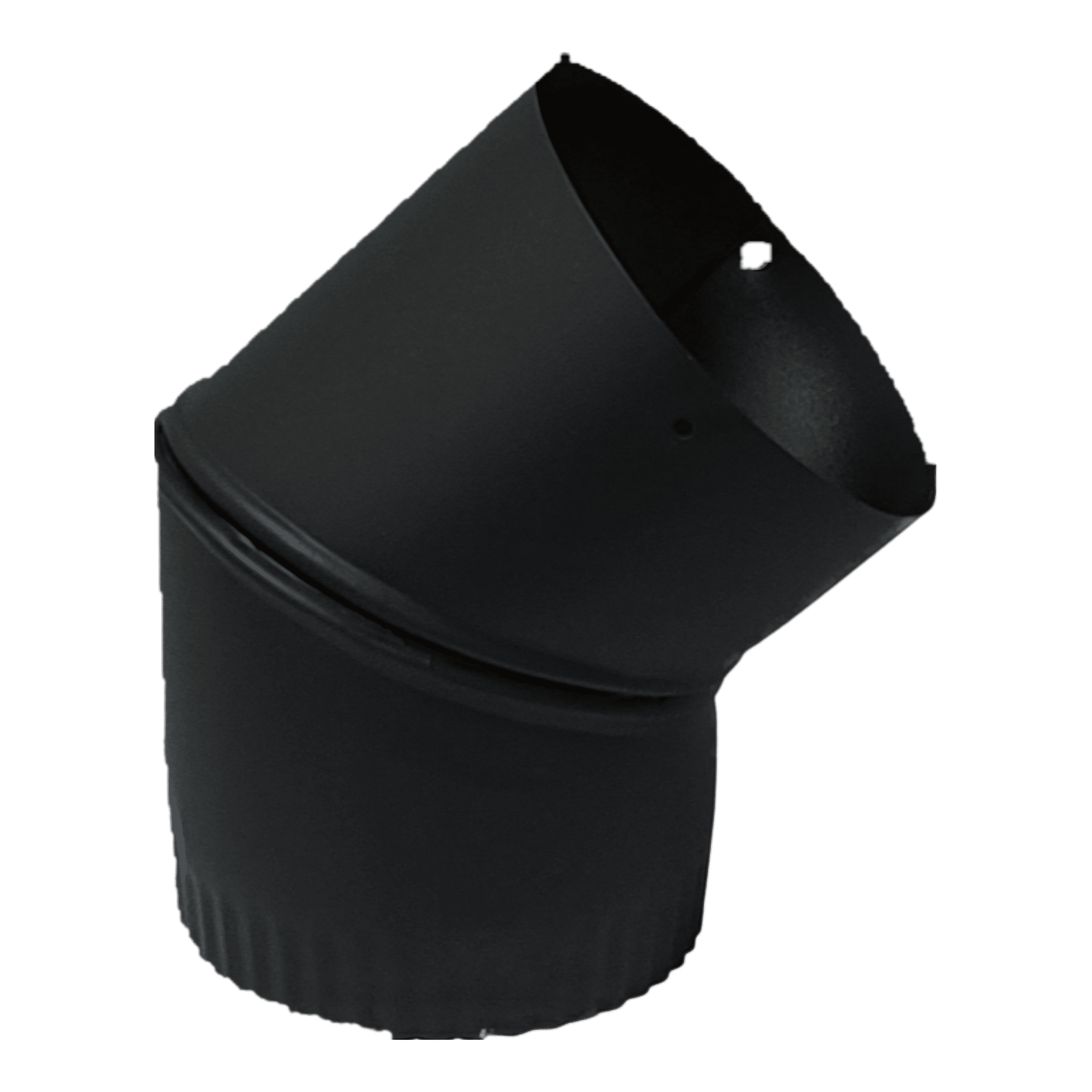

4-Inch 45-Degree Single-Wall Stove Pipe Elbow

This 4-inch 45-degree elbow is a single-wall connector-pipe fitting for compatible stove installations that use 4-inch stovepipe. It is made from 26-gauge black-finished stainless steel and is intended to change the direction of a connector-pipe run where that configuration is permitted by the appliance and installation instructions.

4-Inch Single-Wall Elbow Features

• Diameter: 4 inches
• Angle: 45 degrees
• Material: 26-gauge black-finished stainless steel
• Type: Single-wall connector stovepipe elbow
• Use: Changes direction in a connector-pipe run where single-wall pipe is permitted

Use Only as Connector Stovepipe

This elbow is part of the single-wall connector section between the appliance and the listed insulated chimney system. It is not a substitute for insulated Class A chimney where the venting system passes through walls, ceilings, roofs, attics, or other combustible construction.

At the required transition point, use the 4-Inch HT Pipe Adapter and compatible insulated chimney components.

Build the Connector Run

Pair this elbow with the straight connector lengths needed for your layout:

• 4-Inch Single-Wall Stove Pipe - 1-Foot Length
• 4-Inch Single-Wall Stove Pipe - 2-Foot Length
• 4-Inch Single-Wall Stove Pipe - 3-Foot Length
• 4-Inch Slip Joint Connector

Need two elbows for an offset? See the 4-Inch 45-Degree Single-Wall Elbow Pair.

Plan the Whole 4-Inch Venting System

Read our 4-Inch Stove Pipe Guide for help understanding where connector stovepipe ends and insulated chimney begins. You can also browse all 4-inch chimney and installation accessories.

Installation and Safety

Every change in direction affects the venting layout, so use elbows only where needed and follow the appliance manual for permitted connector configuration, rise, clearances, fastening, and chimney requirements. Do not rely on a universal clearance number for every appliance or connector-pipe system.

For general heating and chimney safety information, see the U.S. Fire Administration heating fire-safety guidance.

If you are unsure whether this elbow belongs in your planned installation, contact us before ordering.
