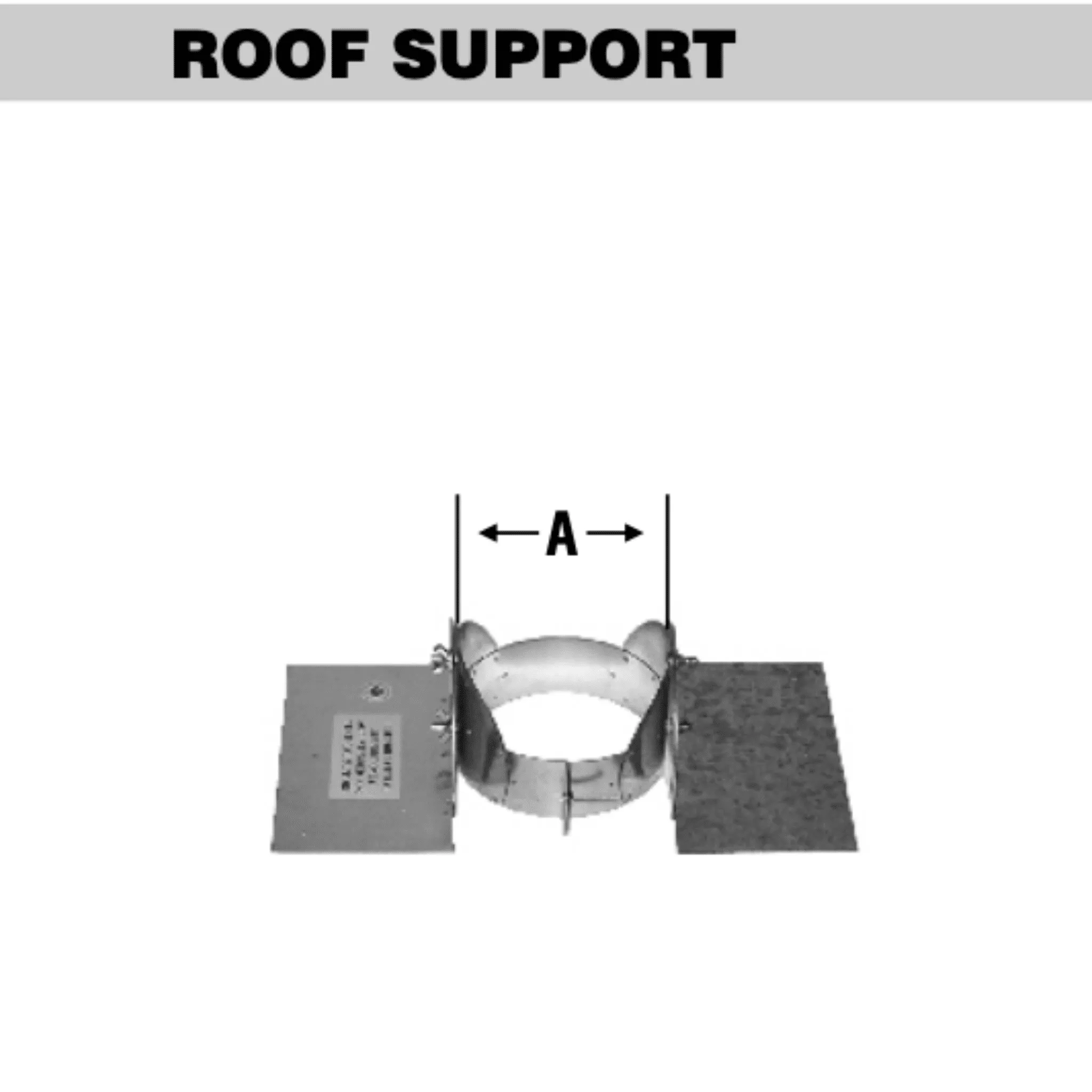

4-Inch Roof Support for Selkirk Model HT Chimney

The 4-inch roof support is used to provide lateral support for a compatible Selkirk 4-inch insulated chimney at the roof line. Selkirk identifies this component as HT4RS and specifies that the 4-inch roof support is used for lateral support only.

This makes it useful when a chimney passes through a roof and needs additional stabilization at that point. It should not be treated as a substitute for the primary support components required elsewhere in the chimney system.

4-Inch Roof Support Features

• Chimney size: 4 inches
• Manufacturer: Selkirk
• Selkirk product code: HT4RS
• Application: Lateral support at the roof line
• System: Selkirk 4-inch Model HT / Ultra-Temp chimney
• Use: Helps stabilize the chimney where it passes through the roof assembly

Use It as Part of the Roof Assembly

The roof support works with the other components required at a roof penetration. Depending on roof pitch and installation design, the system may also require flashing, a storm collar, chimney lengths, and a rain cap.

Popular related components include:

• 4-Inch Adjustable Roof Flashing
• 4-Inch Steep Roof Flashing
• 4-Inch Storm Collar
• 4-Inch Rain Cap
• 4-Inch Insulated Chimney Pipe - 36-Inch Length

For help planning the full system, read our 4-Inch Stove Pipe Guide or browse all 4-inch insulated chimney pipe and installation accessories.

Important Support Notes

Because Selkirk specifies the HT4RS as a lateral-support component, do not rely on it as the sole vertical support for the chimney unless the current installation instructions specifically show that configuration. The complete system must use the support components required for the chimney height and route.

Additional roof bracing may be required when the chimney extends a significant distance above the roof or when the installation is exposed to wind, snow, or other structural loads. Follow the current Selkirk instructions rather than relying on a universal rule.

Installation and Compatibility

Install this roof support only with a compatible Selkirk 4-inch Model HT / Ultra-Temp chimney system. Follow the appliance manual, Selkirk installation instructions, roofing requirements, and applicable building and fire codes for support, flashing, clearances, chimney height, and weather sealing.

For current manufacturer specifications, see the Selkirk Ultra-Temp chimney information.
