4-Inch Steep Roof Flashing for Selkirk Model HT

This 4-inch steep roof flashing is designed for compatible Selkirk Model HT / Ultra-Temp chimney installations on higher-pitch roofs. Selkirk identifies the 4-inch steep flashing as HT4SRF for roof pitches from 6/12 through 12/12.

The flashing forms the weather-shedding base around the chimney penetration and works together with the storm collar to help keep rain and snow out of the roof opening.

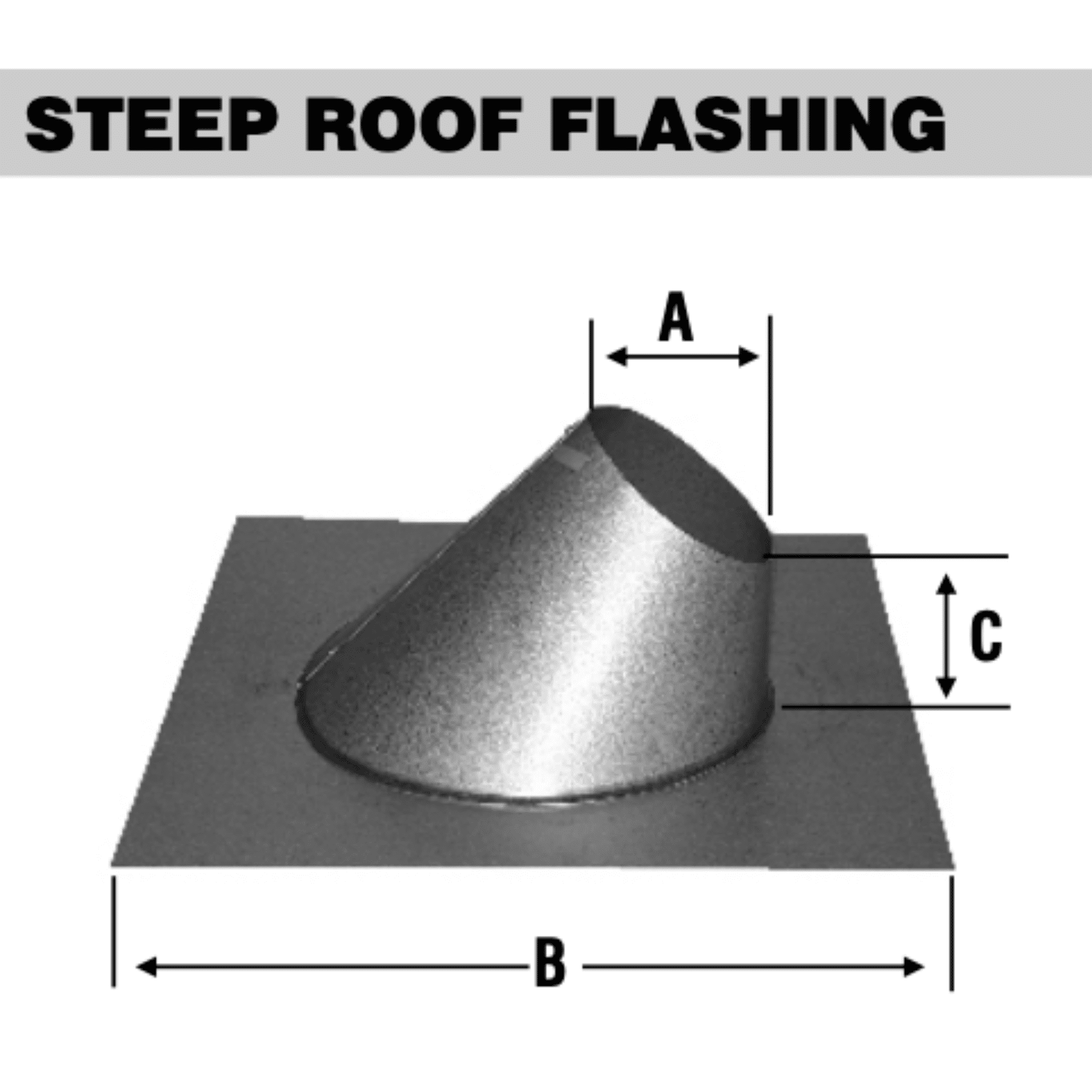

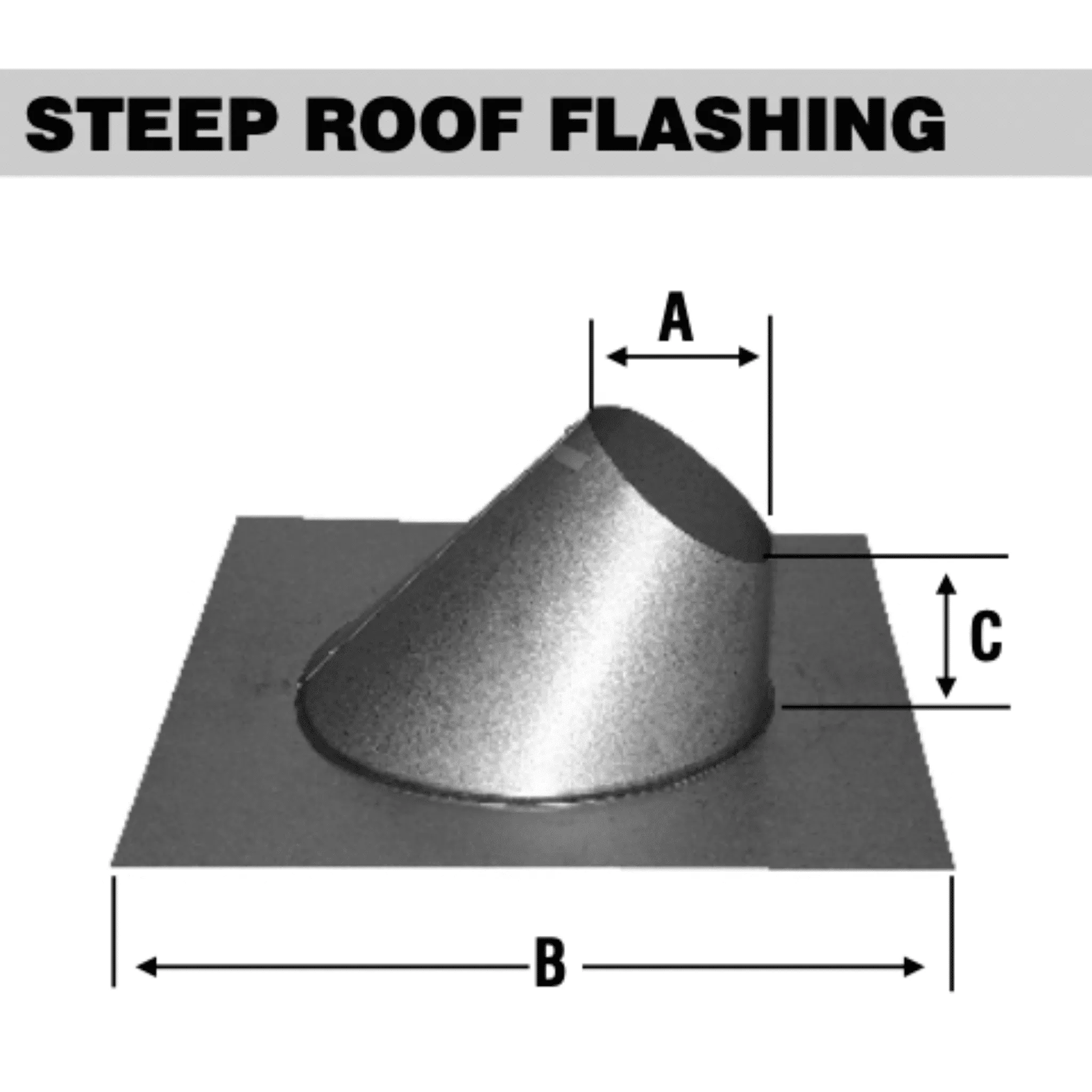

4-Inch Steep Roof Flashing Features

• Chimney size: 4 inches
• Manufacturer: Selkirk
• Selkirk product code: HT4SRF
• Roof pitch range: 6/12 to 12/12
• Chimney opening: Approximately 6-1/4 inches
• Base size: Approximately 22 x 22 inches
• System: Selkirk 4-inch Model HT / Ultra-Temp chimney

Choose Flashing by Roof Pitch

This steep-roof flashing is intended for roof pitches from 6/12 through 12/12. For lower-pitch roofs from 2/12 through 6/12, use the 4-Inch Adjustable Roof Flashing.

Roof material and construction also affect the correct flashing method. Always select a roof-penetration component that matches the chimney system, roof type, and manufacturer instructions.

Related Roof-Penetration Components

• 4-Inch Storm Collar
• 4-Inch Roof Support
• 4-Inch Rain Cap
• 4-Inch Insulated Chimney Pipe - 36-Inch Length
• 4-Inch Insulated Chimney Pipe - 24-Inch Length

Read our 4-Inch Stove Pipe Guide or browse all 4-inch chimney pipe and installation accessories when planning the complete system.

Installation Notes

Steep roofs can create larger and more complex chimney openings than low-slope roofs, so careful layout is important before cutting the roof. Follow the Selkirk installation instructions and roofing requirements for opening size, flashing placement, fastening, sealing, chimney support, and termination height.

Do not rely on a universal adhesive or sealant method for every roof material. Confirm the roofing manufacturer's requirements and applicable local codes.

For current manufacturer specifications, see the Selkirk Ultra-Temp chimney information.
